Company Description
[Your Company Name] is a professional manufacturer specializing in expanded metal mesh. We are dedicated to providing high-quality, durable metal products for construction, industry, and decoration.Our advanced production lines ensure that every sheet and coil of expanded metal meets international standards. We offer a full range of products, including standard, flattened, and heavy-duty expanded metal, available in materials like steel, stainless steel, and aluminum. We also welcome OEM orders for custom sizes and patterns.
Key Features:
- "From Micro Mesh to Heavy Grate: We Engineer It All."
- "Expanding the Possibilities in Steel, Aluminum & Stainless."
- "Expanded to Your Exact Specifications."
- "High-Volume Production, Uncompromised Quality."
- "Where Security Meets Visibility."
- "From Concept to Completion – We Speak Mesh."
- "Engineering Mesh Solutions, Not Just Selling Sheets."
- "Factory Direct Pricing, Premium Quality."
Stainless Steel Expanded Metal Mesh

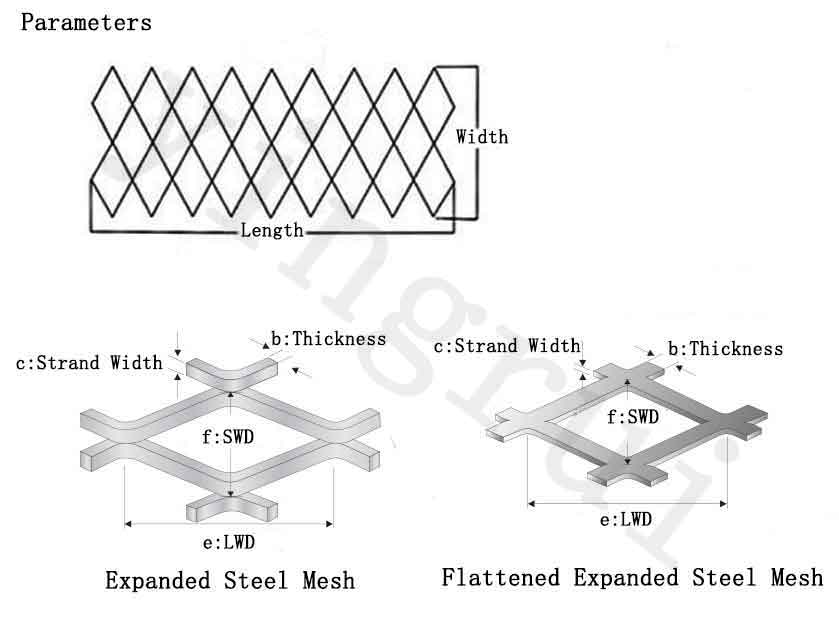

Detailed specifications for 316 stainless steel expanded metal mesh
Specifications of stainless steel expanded metal sheet | |||||
Item | Thickness | SWD | LWD | Width | Length |
(Inch) | (Inch) | (Inch) | (Inch) | （Inch） | |
SSEM-01 | 0.134 | 0.923 | 2.1 | 48 | 48 |
SSEM-02 | 0.134 | 0.923 | 2.1 | 24 | 24 |
SSEM-03 | 0.09 | 0.923 | 0.923 | 48 | 48 |
SSEM-04 | 0.09 | 0.923 | 0.923 | 24 | 24 |
SSEM-05 | 0.09 | 1.33 | 3.15 | 48 | 48 |
SSEM-06 | 0.09 | 1.33 | 3.15 | 24 | 24 |
SSEM-07 | 0.06 | 0.5 | 1.26 | 48 | 48 |
SSEM-08 | 0.06 | 0.5 | 1.26 | 24 | 24 |
SSEM-09 | 0.06 | 0.923 | 2.1 | 48 | 48 |
SSEM-10 | 0.06 | 0.923 | 2.1 | 24 | 24 |
SSEM-11 | 0.06 | 1.33 | 3.15 | 48 | 48 |
SSEM-12 | 0.06 | 1.33 | 3.15 | 24 | 24 |
SSEM-13 | 0.048 | 0.5 | 1.26 | 48 | 48 |
SSEM-14 | 0.048 | 0.5 | 1.26 | 24 | 24 |
Support customize, the minimum SWD is 0.5mm and minimum LWD is 0.7mm Material: stainless steel 304, 316, 316L. Hole pattern: diamond, hexagonal, oval and other decorative holes. Surface: raised and flattened surface. | |||||
Applications
Architectural partitions.
Architectural barriers.
Building façade accents.
Security fencing.
EMI/RFI shielding.
Security mesh air-conditioning unit covers.
Window, door, and skylight guards.
Walkways, mezzanines, catwalks, stairways, and ramps.
Note
All specifications are for standard products. Custom specifications including thickness, mesh size, and dimensions are available upon request. 316L grade available for applications requiring extra low carbon content to prevent carbide precipitation during welding.
Typical Applications
- Marine and coastal architecture
- Chemical processing equipment
- Food and pharmaceutical processing
- Architectural facades and sunscreens
- Industrial filters and sieves
- Machine guards and safety barriers
- Ventilation panels and grilles
- Decorative interior design elements
Material Comparison
316 stainless steel vs other common materials for expanded metal mesh
| Property | 316 Stainless Steel | 304 Stainless Steel | Carbon Steel | Aluminum |
|---|---|---|---|---|
| Corrosion Resistance | ||||
| Chemical Resistance | ||||
| Marine Environment | ||||
| High Temperature | ||||
| Strength | ||||
| Weight | ||||
| Cost |
Related Products
Other expanded metal products you might be interested in
Request a Quote or Sample
Contact us for pricing, technical consultation, or to request a sample of our 316 stainless steel expanded metal mesh
