Titanium expanded mesh is made of titanium plate or titanium coil. Titanium expanded mesh is mostly used as a mixed metal oxide electrode base material to increase the surface area so that more catalyst material can be used. Titanium expanded mesh Hole pattern is mostly diamond and hexagon. And surf
Product details

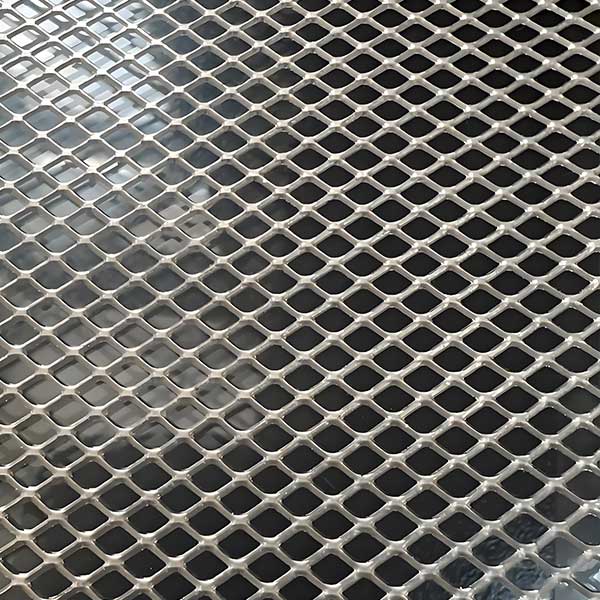

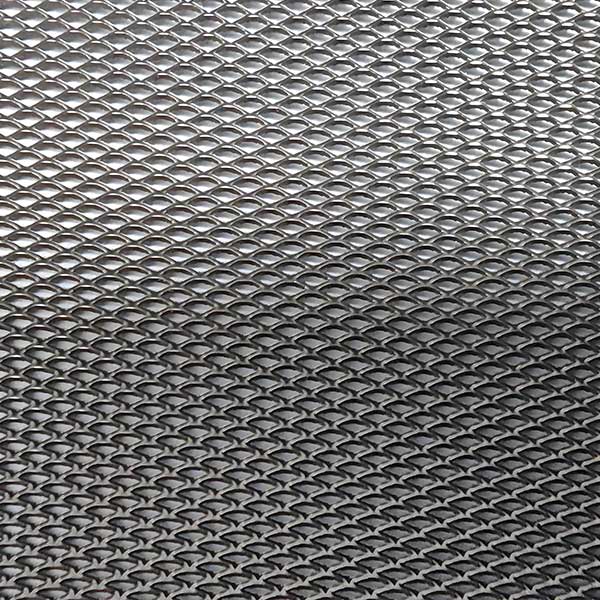

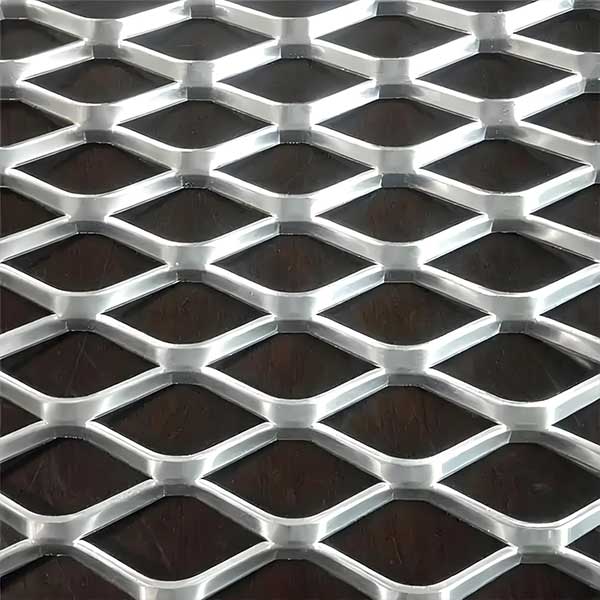

Titanium expanded mesh is made of titanium plate or titanium coil. Titanium expanded mesh is mostly used as a mixed metal oxide electrode base material to increase the surface area so that more catalyst material can be used. Titanium expanded mesh Hole pattern is mostly diamond and hexagon. And surface type is raised or flattened. titanium expanded mesh produces excellent results in current density and plating, providing good solution movement, electrolyte transfer, and plating.
Features
Highest strength-to-weight: Titanium boasts the highest strength-to-weight ratio of any common metal, meaning it's incredibly strong compared to its weight.
Excellent corrosion resistance: Titanium naturally forms a passive oxide layer that shields it from corrosion, even in harsh environments like saltwater or chlorine.
Low-temperature resistance: Titanium and its alloys generally exhibit excellent resistance to low-temperature environments, with some grades showing improved strength and ductility as temperatures decrease.
Superior seawater oxidation resistance: exhibits superior seawater oxidation resistance due to a unique self-repairing passive oxide film on its surface that protects the base metal from corrosion.
Specifications

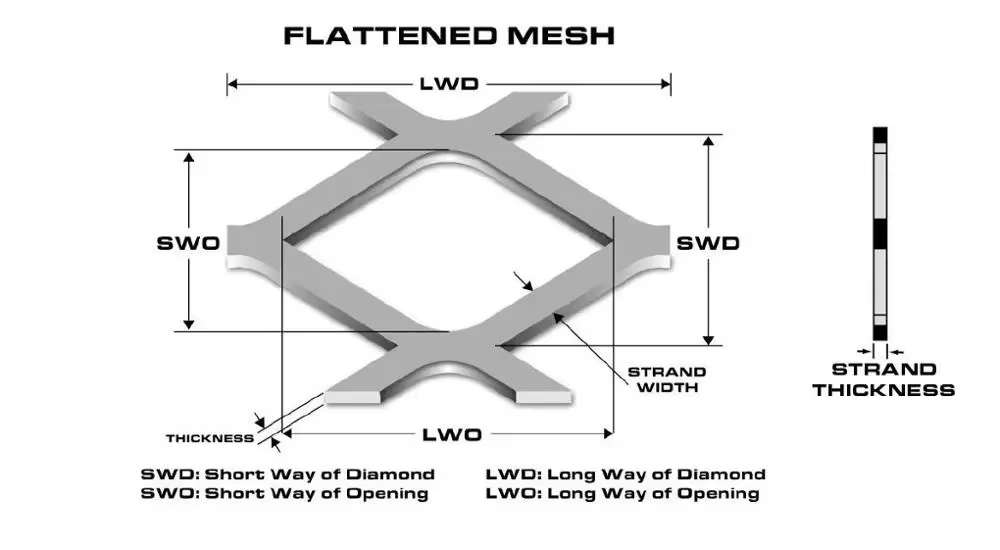

Model | LWD (mm) | SWD (mm) | Strand (mm) | Thickness (mm) |
BDTM-01 | 6 | 3.0 | 1.2 | 1.5 |
BDTM-02 | 12 | 5.0 | 1.4 | 1.5 |
BDTM-03 | 12 | 6.0 | 2.0 | 2.8 |
BDTM-04 | 10 | 5.5 | 1.0 | 1.0 |
BDTM-05 | 10 | 5.0 | 1.0 | 1.0 |
BDTM-06 | 14 | 7.0 | 1.5 | 1.5 |
BDTM-07 | 16 | 8.0 | 2.0 | 2.0 |
BDTM-08 | 20 | 10.0 | 2.5 | 2.5 |
Application of expanded titanium mesh: electroplating electrode electrolytic hydrogen, small hydrogen making machine, electrolytic slot
Raw material material: titanium, TA1 TA2
Common thickness: 0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm
Typical mesh size (LWD*SWD): 12.5*6.5mm, 12.5*4.5mm, 10*5mm, 8*4mm, 6*3mm, 4*2mm, 2*1mm, 1.5*0.8mm, etc. Special mesh can be customized as required.
Common mesh width: 1250mm, 1500mm
Production process: stretching and expansion, stretching from titanium plates or titanium foil through expanding, and the mesh is diamond -shaped.
Packing: hard paper tube+leather paper
Advantages of titanium expanded mesh: acid and alkali, high temperature resistance, long service life, low replacement cost
Applications
Titanium expanded metal sheet is usually used for filters, ion exchange membrane electrodes, battery electrode mesh, oxygen cathode ion membranes, electrolytic cell titanium anodes, electroplating anode mesh, etc.
