Galvanized expanded metalsheetthat has been hot-dipped or electro-galvanized for corrosion protection.And theprocess protects the metal from corrosion by converting its surface into a layer of zinc, which resists oxidation and increases durability.The mesh openings are
Product details
Galvanized expanded metal sheet that has been hot-dipped or electro-galvanized for corrosion protection. And the process protects the metal from corrosion by converting its surface into a layer of zinc, which resists oxidation and increases durability. The mesh openings are available in various patterns, including diamond, hexagonal, or other decorative mesh patterns.
Expanded metal is available in different thicknesses, weights, and opening sizes, which makes it suitable for use in a variety of applications.
Features
Excellent Corrosion Resistance: The zinc coating acts as a robust barrier against moisture, oxygen, and other corrosive elements. Compared with uncoated steel, it has a longer service life.
High Strength and Rigidity: The interlocking diamond-shaped mesh pattern effectively distributes loads, making it strong for its weight. Resists denting and deformation better than woven meshes.
Good Ventilation and Visibility: The mesh structure allows air, light, sound, and some degree of visibility to pass through.
Safety: The raised strands and diamond pattern provide excellent traction underfoot, making it ideal for walkways, ramps, platforms, and stair treads.
Low Cost: Lower cost than materials like stainless steel expanded metal or solid plates.
Orthers: Low Maintenance, versatility, lightweight, sustainability
Specifications
Elements of 3003 Aluminum.
Al: 98.7%, Mn: 1% - 1.5%, Cu: 0.05% - 0.2%, Fe: 0.7% max, Zn: 0.1% max, Si: 0.6 max.
Small sheets of aluminum expanded metal.
12" × 12", 12" × 24", 12" × 36", 12" × 48", 24" × 24", 24" × 36", 24" × 48", 36" × 36", 36" × 48" (other sheet sizes are available upon request).

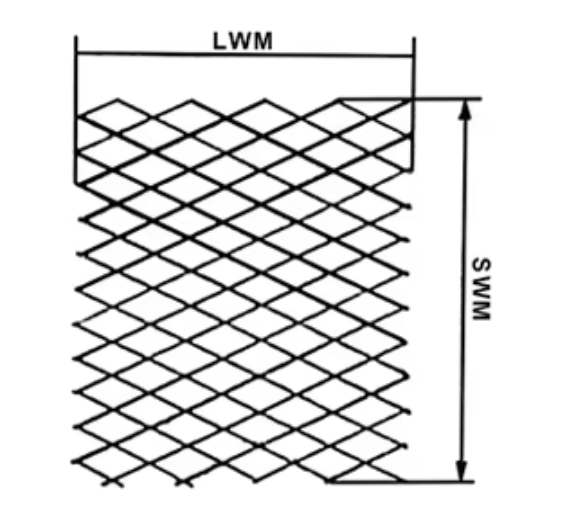

Standard size of Galvanized Expanded Metal Sheet | ||||||

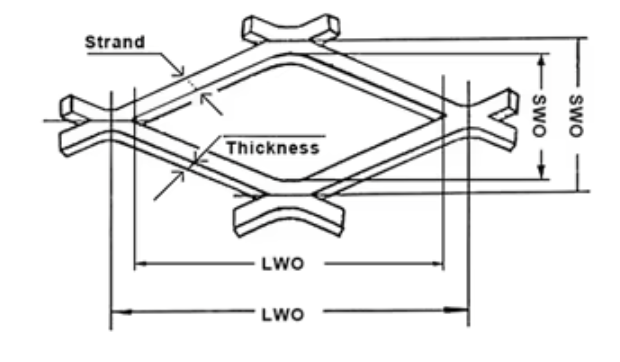

Thickness (mm) | SWD (mm) | LWD (mm) | Strand width (mm) | Width (m) | Length (m) | Weight (kg/m2) |
1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
4 | 60 | 120 | 4 | 2 | 7.5 | 4.0 |
4 | 80 | 180 | 4 | 2 | 10 | 3.0 |
4 | 100 | 200 | 4 | 2 | 12 | 2.5 |
4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
5 | 75 | 150 | 5 | 2 | 10 | 3.0 |
6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
Applications
Grating: Galvanized expanded metal sheet Commonly used as flooring or walkway surface in industrial settings. It provides good traction and is slip-resistant.
Fencing: Galvanized expanded metal sheet Used to create fencing that is both strong and attractive.
Security screen: The tight mesh of Galvanized expanded metal sheet makes it an ideal material for security screens that need to be resistant to forced entry.
Filter: The openings in expanded metal make it an effective filter material that can be used in a variety of industries, such as oil and gas production.
Commercial and industrial settings: Galvanized expanded metal sheet has a wide range of applications in both commercial and industrial settings.
Others: residential and commercial applications, Ramps, Stair treads, Catwalks, Walkways, Mezzanines etc.
