Product details

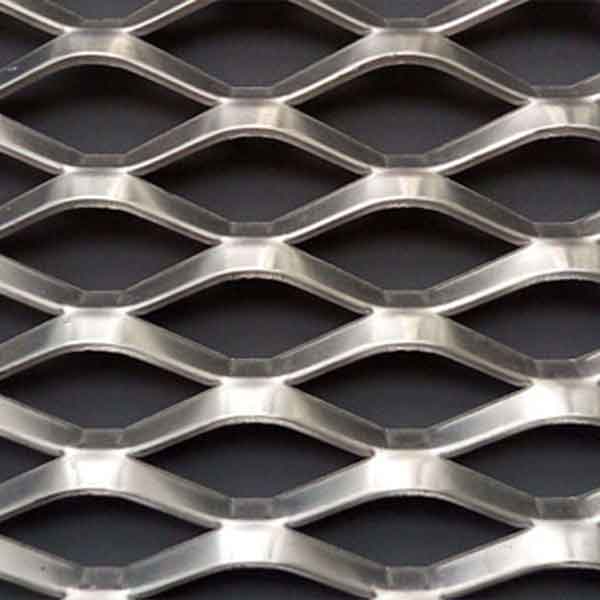

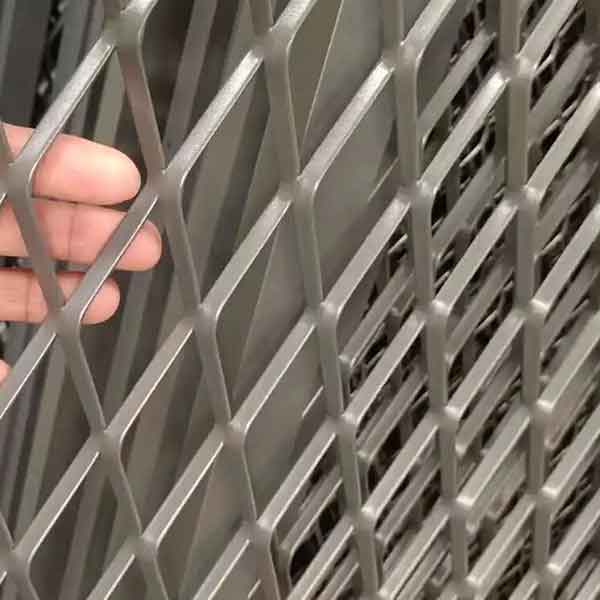

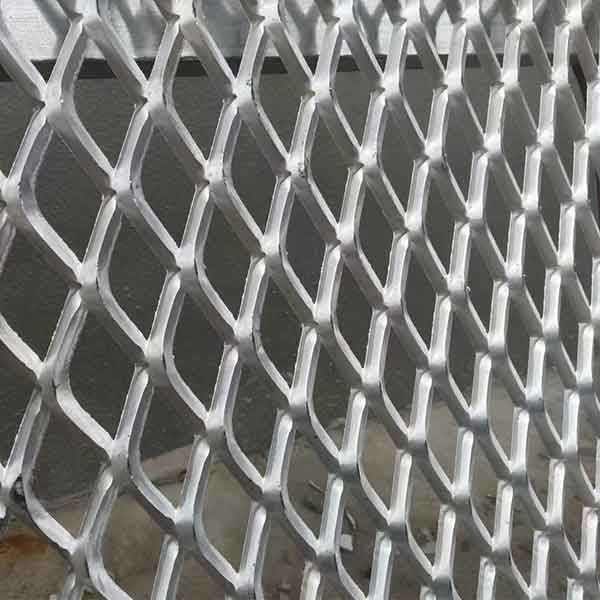

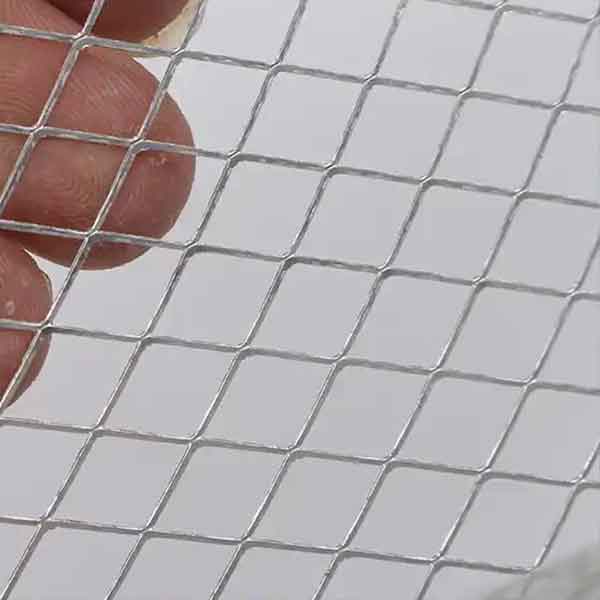

Aluminum expanded metal with excellent rust and corrosion resistance , and is suitable for high temperature, salty and other harsh environments. Surface treated with spray-painting to achieve better corrosion resistance, and it has a variety of color options. Aluminum expanded metal is very popular, because it’s economical and versatile. It is made from solid aluminum sheet with uniform diamond shaped openings. Compared with solid aluminum plates of the same weight, it is lighter and rigid, and much lighter than stainless steel and carbon steel. The aluminum mesh panel has the characteristics of bright appearance, economy, and easy to bend or form in any direction.

 Features

• No rust: Corrosion and rust resistance, be able to adapt to harsh environments.

• Good Economic: It is cheaper than stainless steel mesh and more economical.

• Lightweight: Widely used in decorative applications.

• Sturdy: More rigid than stainless steel and carbon steel.

Specifications

Elements of 3003 Aluminum.

Al: 98.7%, Mn: 1% - 1.5%, Cu: 0.05% - 0.2%, Fe: 0.7% max, Zn: 0.1% max, Si: 0.6 max.

Small sheets of aluminum expanded metal.

12" × 12", 12" × 24", 12" × 36", 12" × 48", 24" × 24", 24" × 36", 24" × 48", 36" × 36", 36" × 48" (other sheet sizes are available upon request).

Applications

• Mainly used for architectural decoration, metal curtain wall, ceiling, protection, filtration, handicraft manufacturing.

• Widely building facades, such as shopping malls, airport passages, theaters, museums, exhibition halls and other architecture.

• Wall claddings.

• Sun shield, ceilings, lighting.

• Safety protection, safety fence.
